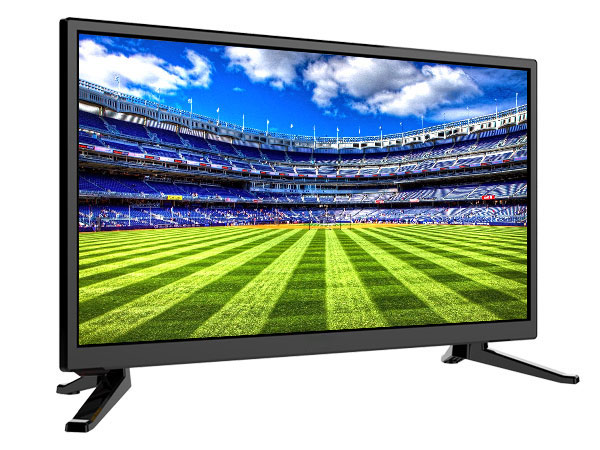

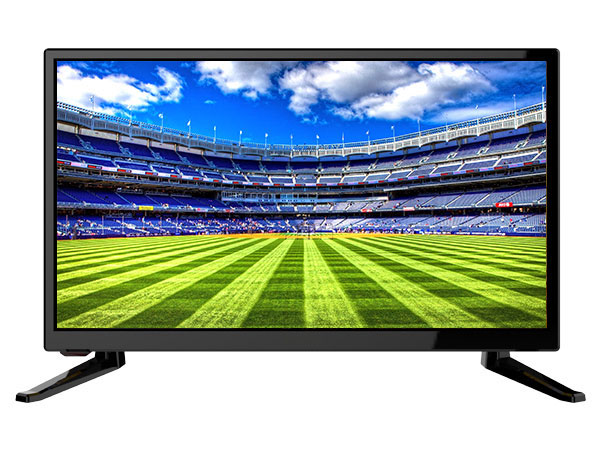

20″ HD DLED TV
Model：LE-2019D-3663
Solution：MSD3663S/MSD3663
Market：Asia Pacific/Europe/South America
Resolution：1366*768
Screen Size：20 Inches
Aspect Ratio：16:9
20″ HD DLED TV (LE-2019D-3663)
Description
Light your life
Express LUCK focuses on the color enhancement and the sharpness strengthen of the images to light your viewing effect. High definition images, along with impressive stereo audio, leads you to a brilliant watching experience.
Prominent Features
HD Images
DLED Tech
Multi-connections
Gliding Design

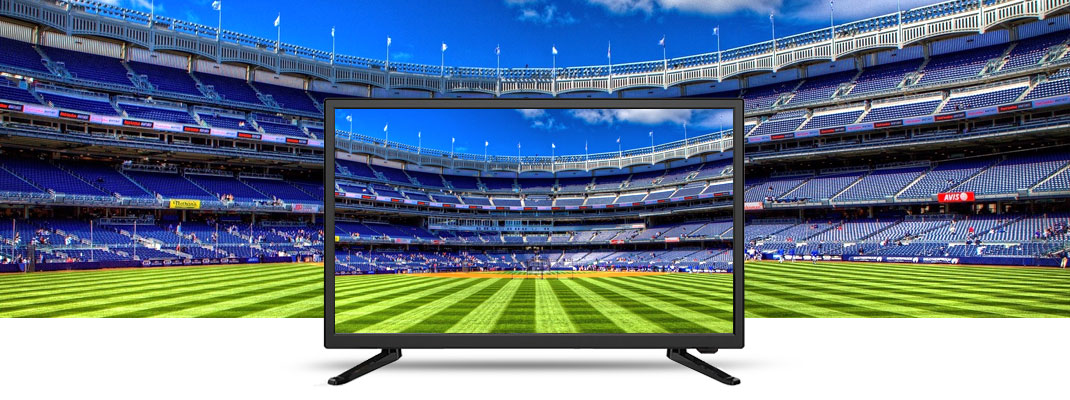

Seize on beauty
White birds, red rose, green mountains, even dark nights has its own beauty. Express LUCK HD TV
seizes those dynamic energies in our life, capturing the beauty of every sight.
Polish up the image
Based on the traditional LED adoption, DLED technology uses a cluster of LED lights behind the LCD screen to more thoroughly concentrate the brightness of the pictures, providing you with grace and perfection viewing experience.

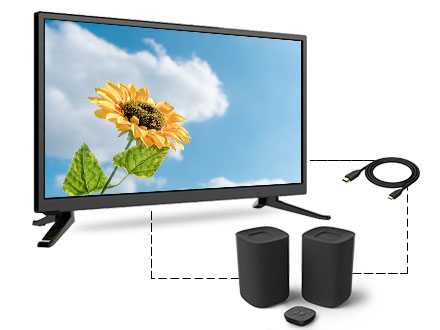

HDMI Connection
Higher quality audio and video effects can be achieved by connecting a variety of devices through HDMI.
Multimedia Sharing
Users can watch videos, play music, view picture and get more diverse audiovisual resources through a USB connection.

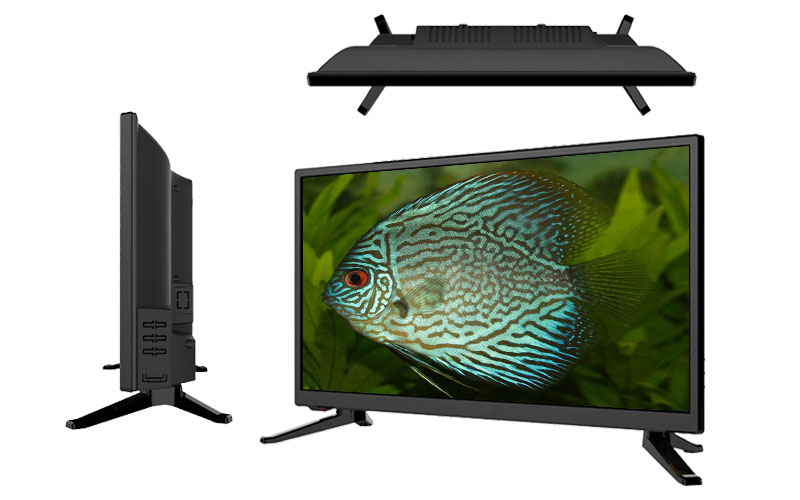

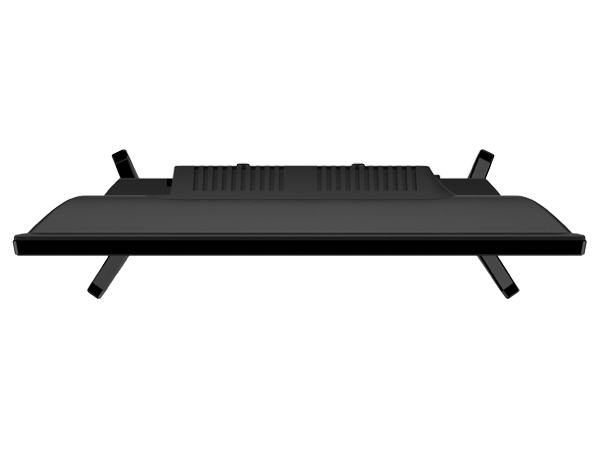

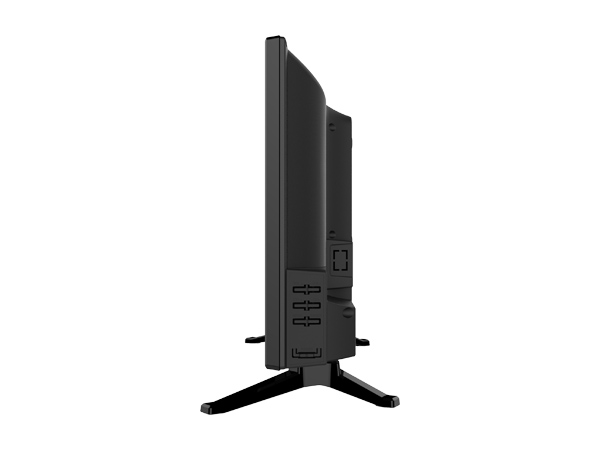

A streamlined thin design for a charming appearance
The slim HD DLED TV is composed of the geometric cutting model, a suitable screen size, simple and easy to clean bracket…have become a fashionable house ornament.
Specifications
Panel Maker
AUO
Display type
DLED
Aspect ratio
16:9
Resolution
1366*768
Brightness
180cd/㎡
Contrast
3000:1
Viewing Angle
178°* 178°
Maximum Colors
16.7M
Response Time
18ms
Solution (EU)
MSD3663S
Solution (AP+LA)
MSD3663
OS
NO
Memory
128B RAM Inside
Comb Filter
3D
Video System (AP+EU)
PAL SECAM
Video System (LA)
ATV:PAL,NTSC
DTV:ISDB
Progressive Scan
YES
HD Ready
YES
PC Resolution
UP to 1366 x 768 @ 60Hz
Color Temperature Adjustment
YES
Audio System (AP+EU)
B/G,D/K,I
Audio System (LA)
M/N
Stereo Sound (AP+EU)
NICAM(AP+EU)
Stereo Sound (LA)
YES (LA)
Maximum Audio Output
2×3W
Equalizers
YES(4 Modes)
Effects
YES
EARPHONE
1
COAXIAL
1
USB
1
HDMI
1
PC AUDIO IN
1
VGA(D-Sub 15pin)(LA)
1
TV(AP+EU)
1
L/R AUDIO IN (AP)
1
YPBPR (LA)
1
CVB&YPBPR (AP)
1
VGA(AP+EU)
1
SCART(EU)
1
MINI AV(EU)
1
MINI YPBPR(EU)
1
CI(EU)
1
Power Requirement
100-240 @50/60Hz
Power consumption(Operation)
≦36W
Power consumption(Standby)
≦0.5W
ETL
/
FCC
/
UL
/
Remote Controller
YES
Wall-mount Bracket
OPTIONAL
Remote Batteries
YES
User Manual
YES
Stand
YES
Packing
Unit(mm)
462*273*76
1Pc/1Carton
(mm)
525*123*350
Net(Kg)
1.6
1Carton(Kg)
2.3
40HQ
2960PCS/40HQ
