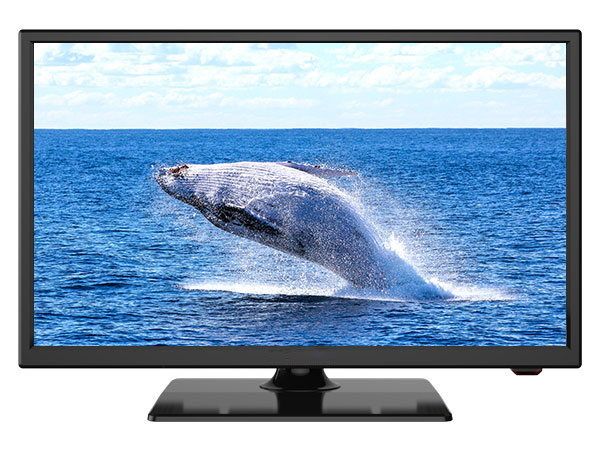

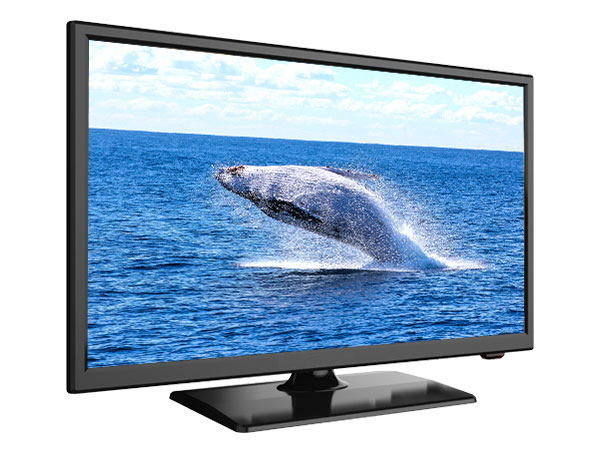

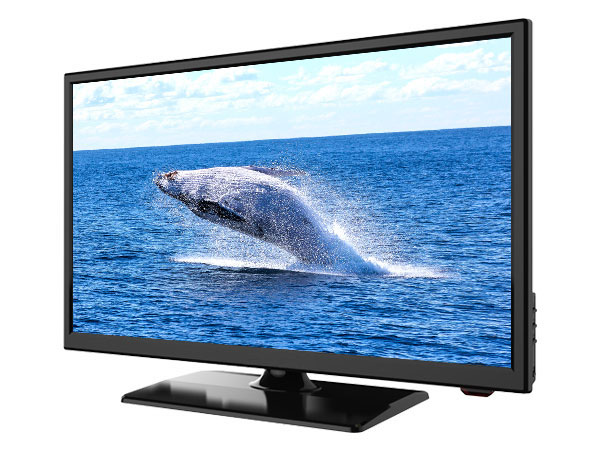

22″ FHD DLED TV (LE-2219D-3663)

22″ FHD DLED TV

Model:LE-2219D-3663
Solution:MSD3663S/MSD3663
Market:Asia Pacific/Europe/South America
Resolution:1920*1080
Screen Size:22 Inches
Aspect Ratio:16:9

Description

Specifications
Packing

Details determine quality

A visually stunning world is vigorously presented to the utmost. Details accurately capturing surprises your visual enjoyment, granting you fully appreciate the beauty of everything.

Prominent Features

FHD Images
DLED Tech
Multi-connections
Gliding Design

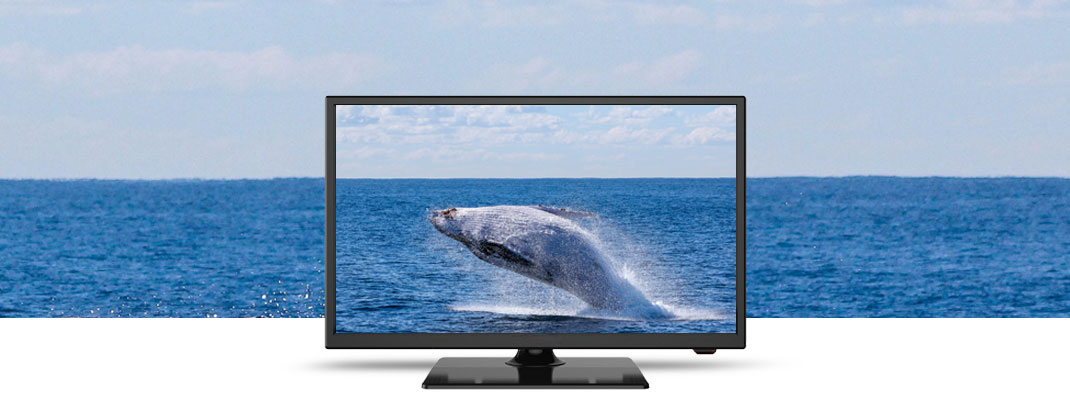

Enjoy the vivid HD Picture

                                               Through the clear picture quality and realistic color, the HD TV with a very high degree of restoration

                                               will present the world in the picture to you.

Amazed your eyes with DLED technology

DLED technology adoption has largely improved the clarity and sharpness of images, along with the motion smoothness. Express LUCK TV also concerns about your life quality by combing convenience with economy.

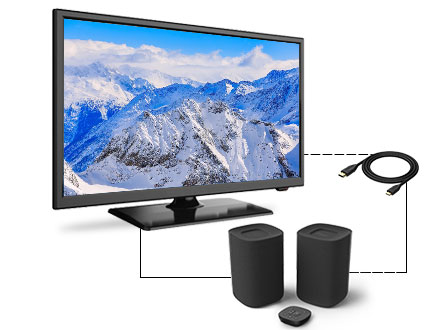

HDMI Connection

Higher quality audio and video effects can be achieved by connecting a variety of devices through HDMI.

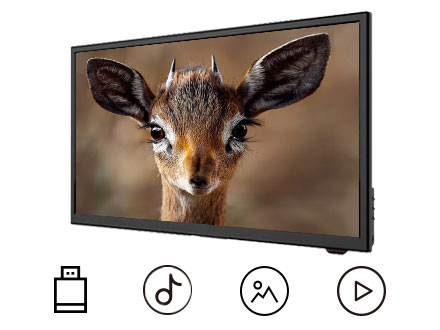

Multimedia Sharing

Users can watch videos, play music, view picture and get more diverse audiovisual resources through a USB connection.

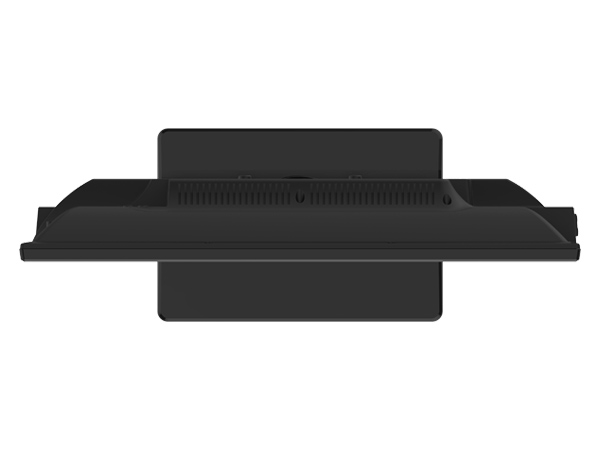

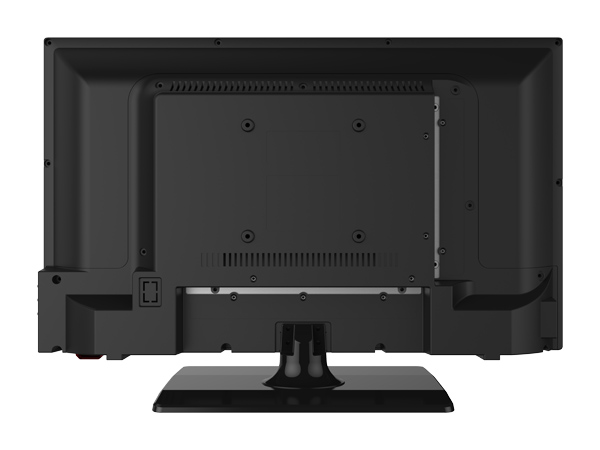

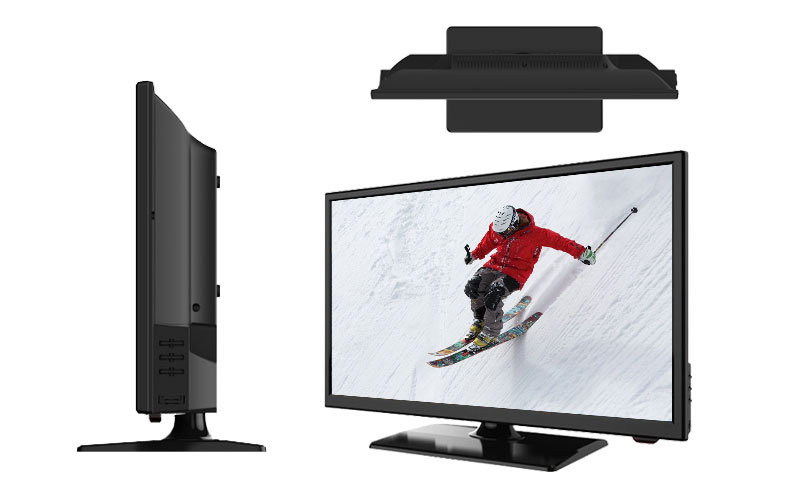

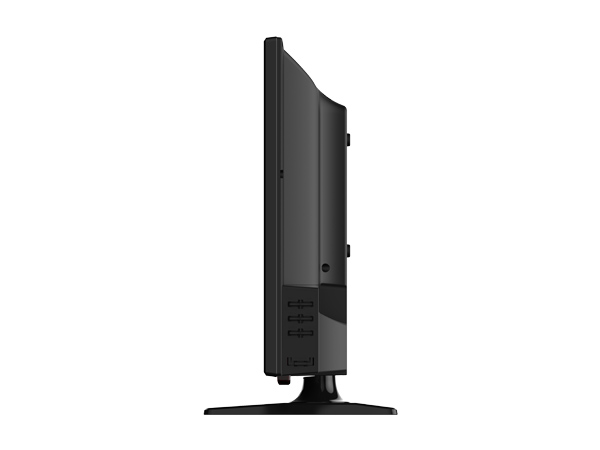

Gliding Design& Simple Concept

Dynamic and smooth lines design illustrates an elegant and comfortable home concept.

Slim shape design fits into any home decor scheme.

Specifications

Panel

Panel Maker

CSOT/AUO

Display type

DLED

Aspect ratio

16:9

Resolution

1920*1080

Brightness

180cd/㎡

Contrast

3000:1

Viewing Angle

178°* 178°

Maximum Colors

16.7M

Response Time

18ms

SOLUTION

Solution (EU)

MSD3663S

Solution (AP+LA)

MSD3663

OS

NO

Memory

128B RAM Inside

Comb Filter

3D

Video

Video System (AP+EU)

PAL SECAM

Video System (LA)

ATV:PAL,NTSC

DTV:ISDB

Video System (AP+EU)

PAL SECAM

Video System (LA)

ATV:PAL,NTSC

DTV:ISDB

Progressive Scan

YES

HD Ready

YES

YPbPr Resolution

480i/p,576i/p,720i/p,1080i/p

PC Resolution

UP to 1920×1080 @60Hz

Color Temperature Adjustment

YES

AUDIO

Audio System(AP+EU)

B/G,D/K,I

Audio System (LA)

M/N

Stereo Sound (AP+EU)

NICAM

Stereo Sound (LA)

YES

Maximum Audio Output

2×3W

Equalizers

YES(4 Modes)

Effects

YES

Connectivity

EARPHONE

1

COAXIAL

1

USB

1

HDMI

1

PC AUDIO IN

1

YPBPR (LA)

1

AV IN (LA)

1

VGA(D-Sub 15pin)(LA)

1

L/R AUDIO IN (AP)

1

CVB&YPBPR (AP)

1

TV(AP+EU)

1

VGA(AP+EU)

1

SCART(EU)

1

MINI AV(EU)

1

MINI YPBPR(EU)

1

CI(EU)

1

S2(EU)

1

Power

Power Requirement

100-240 @50/60Hz

Power consumption(Operation)

≦36W

Power consumption(Standby)

≦0.5W

Certifications

ETL

/

FCC

/

UL

/

Accessory

Remote Controller

YES

Wall-mount Bracket

OPTIONAL

Remote Batteries

YES

User Manual

YES

Stand

YES

Packing

Dimension

Unit(mm)

509.5*307*75.4

1Pc/1Carton

(mm)

509.5*307*75.4

WEIGHT

Net(Kg)

2

1Carton(Kg)

3.1

LOADING

2448PCS/40HQ
