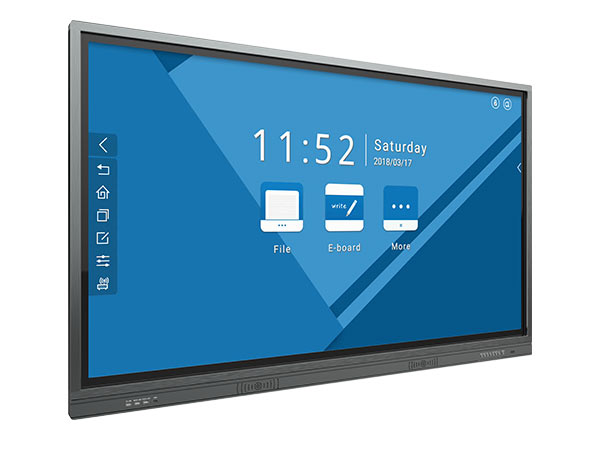

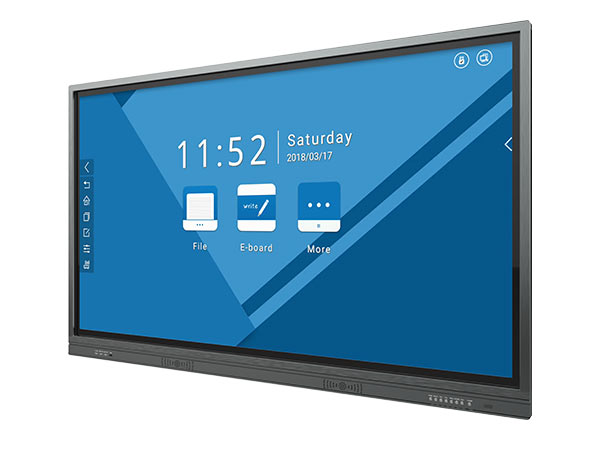

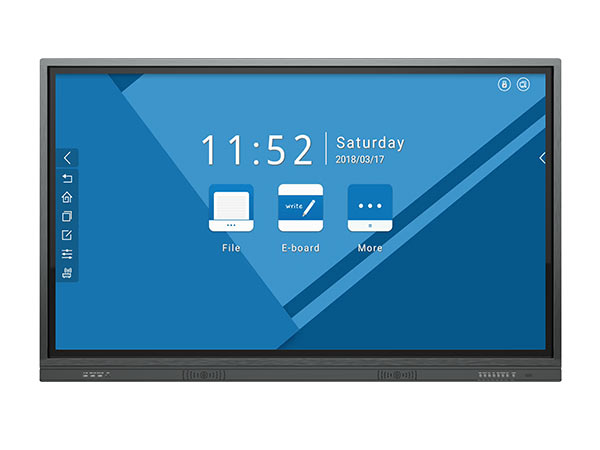

65″ Interactive Smart Teaching Panel (HM65-620)

65″ Interactive Smart Teaching Panel

Model:HM65-620
Hass:HI3751 ARBCV811
Max Resolution:3840*2160
Screen Size:65 Inches
Ratio:4000:1

Description

Specifications
Packing

Specifications

Android OS Functions

OS System

Android 8.0

Hass

HI3751 ARBCV811 dual-core A73 and dual-core A53 CPU; with 1.5G frequency, Quad-core MaliG51 GPU

RAM

2G NAND-Flash 8GB

Decoding Resolution

3840*2160

Networking Support

Ethernet, Wi-Fi

Video Format

MPEG2-4,H.264,H.265,TS,Realmedia,etc.

Picture Format

JPG, JPEG, BMP, PNG, etc.

Child Lock

Support

Miracast

Support

Postil

Support

Eraser

1

USB Update

Support

OSD

English/Chinese

Picture/Display

Panel

65″

Panel Model

LC650EGY

Panel Supplier

LG

Max Resolution

3840*2160(pixels)

Pixel Pitch

( Sub Pixel)

0.496 mm x 0.372 mm

Brightness(typ)

350cd/m² (typ.)

Ratio

4000:1 (typ.)

Chroma

1.07Billon colors(10bit )

Response Time(ms)

6ms (typ.)

Viewing Area

1428.48mm(H)×803.52mm(V)

Viewing Angle

178°(H) / 178°(V)

Life Time(typ)/(min)

50,000 hrs (typ.)

Color Gamut

(x% NTSC)

72%

Multi-point Touch

Touch Technology

Infrared Sensor, Capacitive

Touch Points

10 Points

Conference Machine

Windows7/8/10, Mac OS, Andriod

Environment

Working Temperature

0℃~40℃

Working Humidity

20%~85% RH Non-Condensing

Storage Temperature

-10℃~60℃

Storage Humidity

10%~60% RH Non-Condensing

Power

Power Supply

100V-240V,50-60 Hz

Power Consumption

(Watt)

≤210W

Power Standby Mode

(Watt)

1W

Speaker

10W*2

ID and Material

Housing Material

aluminum frame+tempered glass+metal cover

Housing Color

Iron grey face frame+Black metal cover

Connectivity (I/O)

Wired Network Input

1

Wired Network Onput

1

Wi-Fi

Have

HDMI Input

3+1 built-in OPS

VGA Input

1

USB2.0

1

USB3.0

1

DP Input

1

AV Input

1

AV Output

L+R

YPbPr Input

1

TV IEC type (Option)

1

RS232

1

PC Audio Input

1

Touch USB-B

1

Earphone

1

SPDIF

1

Front PC USB

1

Front Android USB

1

Front Touch USB

1

Front HDMI Input

1

Accessary

Remote Control

1

Power Cord

1

Touch Pens

1

Wall Hanging

1

User Manual

(Electronic Edition)

1

Rack Truck (Optional)

1

Build-in PC

(Optional)

CPU: I3/I5/I7 (Optional)

Memory: 4G

Harddisk: 500G 1T/2T

Packing

Dimension

Bare Machine Size

(W*D*H)

1515.4(L)*102.6(T)*935.5(H)mm

Package Size

(W*D*H)

1627(L)*250(T)*1120(H)mm

VESA Wall Mount

400*600mm, 4*M8 screws

WEIGHT

Net Weight

65 Kg±1.5 Kg

Gross Weight

79 Kg±1.5 Kg(Carton box)
