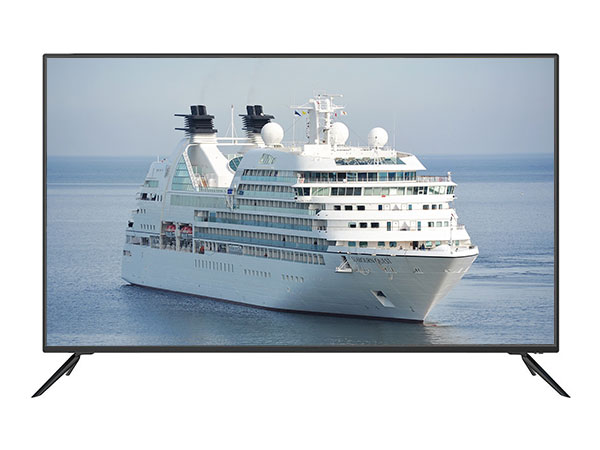

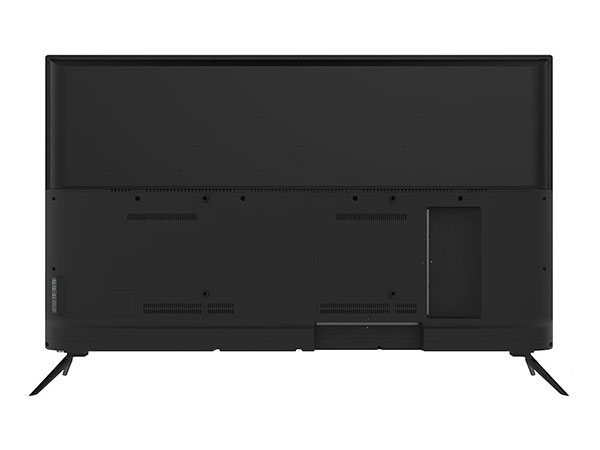

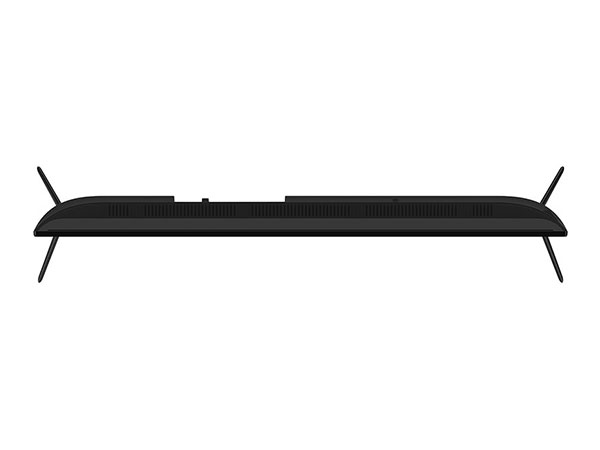

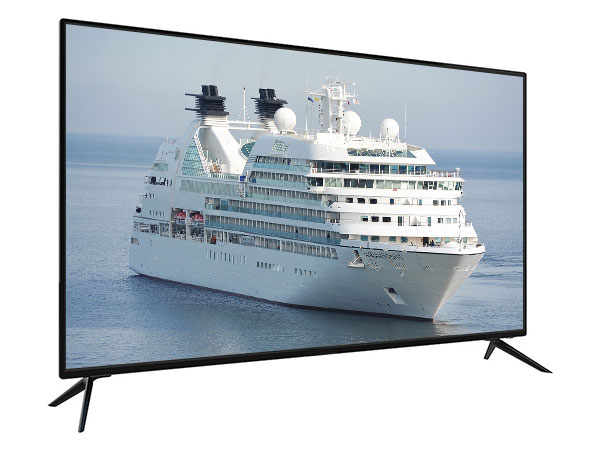

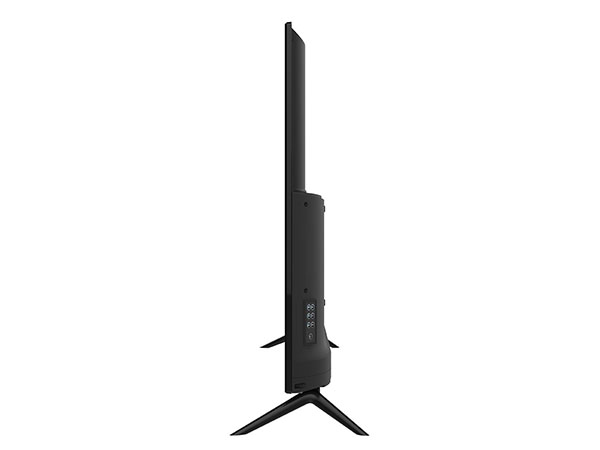

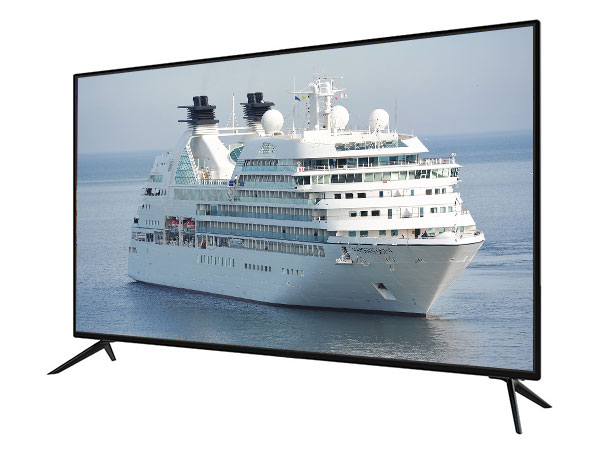

50″ UHD DLED TV (LE-50P28-3663)

50″ UHD DLED TV

Model:LE-50P28-3663
Solution:MSTAR V3663/MT3663
Market:Asia Pacific/Europe/South America
Resolution:3840*2160
Screen Size:50 Inches
Aspect Ratio:16:9

Description

Specifications

Panel Maker

AUO/INNOLUX

Display type

DLED

Aspect Ratio

16:9

Resolution

3840*2160

Brightness

280cd/㎡

Contrast

5000:1

Viewing Angle

178°* 178°

Maximum Colors

16.7M

Response Time

9.5ms

Solution(AP+EU)

MSTAR V3663 Without AC-3

Solution(LA)

MT3663

OS

NO

Memory

128B RAM Inside

Comb Filter

3D

Video System(AP+EU)

PAL SECAM

Video System(LA)

ATV:PAL,NTSC

DTV:ISDB

Progressive Scan

YES

HD Ready

YES

YPbPr Resolution

480i/p,576i/p, 720i/p,1080i/p

PC Resolution

UP to  1920×1080 @ 60Hz

Color Temperature Adjustment

YES

Audio System(AP+EU)

B/G,D/K,I

Audio System(LA)

M/N

Stereo Sound(AP+EU)

NICAM

Stereo Sound(LA)

YES

Maximum Audio Output(AP+EU)

2×10W

Maximum Audio Output(LA)

2×8W

Equalizers

YES(4 Modes)

Effects

YES

AV IN

1

COAXIAL

1

EARPHONE

1

HDMI(AP+EU)

2

HDMI(LA)

3

PC Audio In

1

RJ45(LA)

1

USB

2

VGA(D-Sub 15pin)

1

YPBPR(LA)

1

YUV(AP+EU)

1

Power Requirement

100-240 @ 50/60Hz

Power consumption(Operation)(AP+EU)

≦56W

Power consumption(Operation)(LA)

≦100W

Power consumption(Standby)

≦0.5W

ETL

NO

FCC

NO

UL

NO

Remote controller(English)

YES

Wall-mount Bracket

OPTIONAL

Remote Batteries

YES

User Manual

YES

Stand

YES

Packing

Unit(mm)

1123.3*652.6*76.4

1Pc/1Carton

(mm)

1254*173*745

Net(Kg)

12.8

1Carton(Kg)

16.5

40HQ

360PCS
