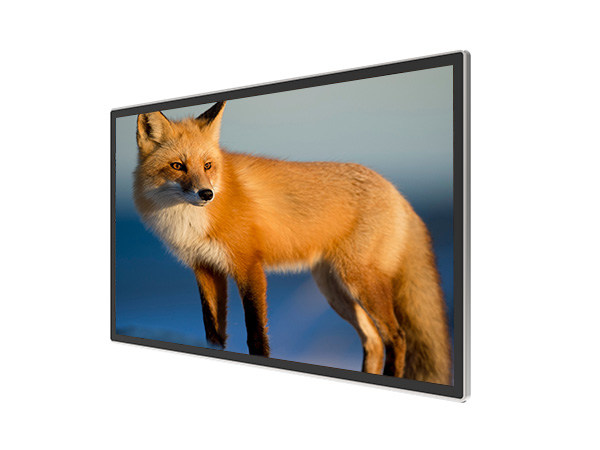

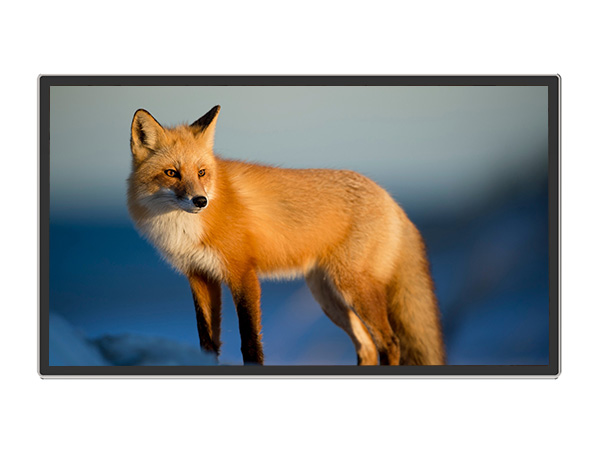

32″ Wall-mounted Digital Signage (W32A5)

32″ Wall-mounted Digital Signage

Model:W32A5
Chipset:Hisilicon V310 ARM Cortex-A53 Dual-Core 1.2G
Max Resolution:1920*1080
Screen Size:32 Inches
Ratio:1200:1

Description

Specifications

OS System

Android 4.4

Chipset

Hisilicon V310 ARM Cortex-A53 Dual-Core 1.2G

RAM

1G NAND-Flash 8GB

Decoding Resolution

Up to 1080P

Networking Support

Ethernet, Wi-Fi

Video Format

AVI,MPEG4,MPEG,MPEG2,3GP

Picture Format

JPG, JPEG, BMP, PNG, GIF

RTC Timing Clock

Support

Timing On&Off

Support

OS Update

YES

OSD

English/Chinese

Panel

32″

Max Resolution

1920*1080(pixels)

Brightness(typ)/(min)

300cd/m² (typ.)

Ratio(typ)

1200:1 (typ.)

Chroma

16.7M

Response Time

(ms)

8ms (typ.)

Viewing Area

699.3mm×394.74mm

Viewing Angle

178°(H) / 178°(V)

Life Time(typ)/(min)

30,000 hrs (typ.)

Working Temperature

0℃~40℃

Working Humidity

20%~85% RH Non-Condensing

Storage Temperature

-10℃~60℃

Storage Humidity

10%~60% RH Non-Condensing

Max. Dislpay Hour/Day

18 hours

Power Supply

100V-240V,50-60 Hz

Power Consumption

(Watt)

≤60W

Audio Frequency Output

5W*2

Housing Material

Metal + Glass

Housing Color

Black body, silver border

Power Switch

1

HDMI IN

1

RJ45

1

USB 2.0

1

USB 3.0

1

Antenma

1

Remote Control

1

Power Cord

1

Packing

Bare Dimension

744mm*439mm*19mm(MIN) 55mm(Max)

Package Dimension

805mm*505mm*120mm

Net Weight

8.5 Kg±1.5 Kg

Gross Weight

10 Kg±1.5 Kg
