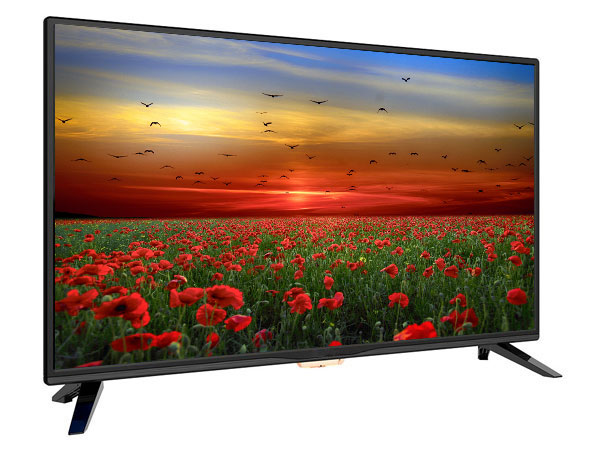

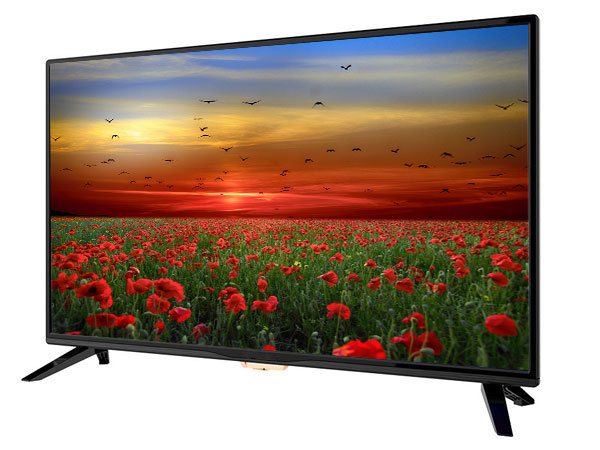

32″ HD DLED TV
Model：LE-32Z1-5522
Solution：MSD5522/MSTAR V5522
Market：South America/Europe
Resolution：1366*768
Screen Size：32 Inches
Aspect Ratio：16:9
Model：LE-32Z1-5522
Solution：MSD5522/MSTAR V5522
Market：South America/Europe
Resolution：1366*768
Screen Size：32 Inches
Aspect Ratio：16:9
Panel Maker
CSOT/AUO/INNOLUX/BOE/IPS
Display type
DLED
Aspect ratio
16:9
Resolution
1366*768
Brightness
200cd/㎡
Contrast
3000:1
Viewing Angle
178°* 178°
Maximum Colors
16.7M
Response Time
8.5ms
Solution(EU)
MSTAR V5522 Without AC-3
Solution(LA)
MSD5522
OS
Android 7.0
Memory(EU)
4GB/8GB Flash
1GB RAM Inside
Memory(LA)
DDR 1GB/1.25GB Inside
4GB/8GB Flash
CPU/GPU
A53*4, Mali450*2
Comb Filter
3D
Video System(LA)
ATV:PAL,NTSC/DTV:ISDB
Video System(EU)
PAL SECAM
Video System
DTV:ISDB
Progressive Scan
YES
HD Ready
YES
YPbPr Resolution
480i/p,576i/p, 720i/p,1080i/p
PC Resolution(LA)
UP to 1366×768 @ 60Hz
PC Resolution(EU)
UP to 1920×1080 @60Hz
Color Temperature Adjustment
YES
Audio System(LA)
M/N
Audio System(EU)
B/G,D/K,I
Stereo Sound(LA)
YES
Stereo Sound(EU)
NICAM
Maximum Audio Output(LA)
2×8W
Maximum Audio Output(EU)
2×10W
Equalizers
YES(4 Modes)
Effects
YES
AV IN
1
YUV(EU)
1
EARPHONE
1
USB(EU)
2
USB(LA)
1
VGA(D-Sub 15pin)
1
PC AUDIO IN
1
COAXIAL
1
HDMI(EU)
2
HDMI(LA)
3
Power Requirement
100-240 @50/60Hz
Power consumption(Operation)
≦56W
Power consumption(Standby)
≦0.5W
ETL
NO
FCC
NO
UL
NO
Remote controller(English)
YES
Wall-mount Bracket
OPTIONAL
Remote Batteries
YES
User Manual
YES
Stand
YES
