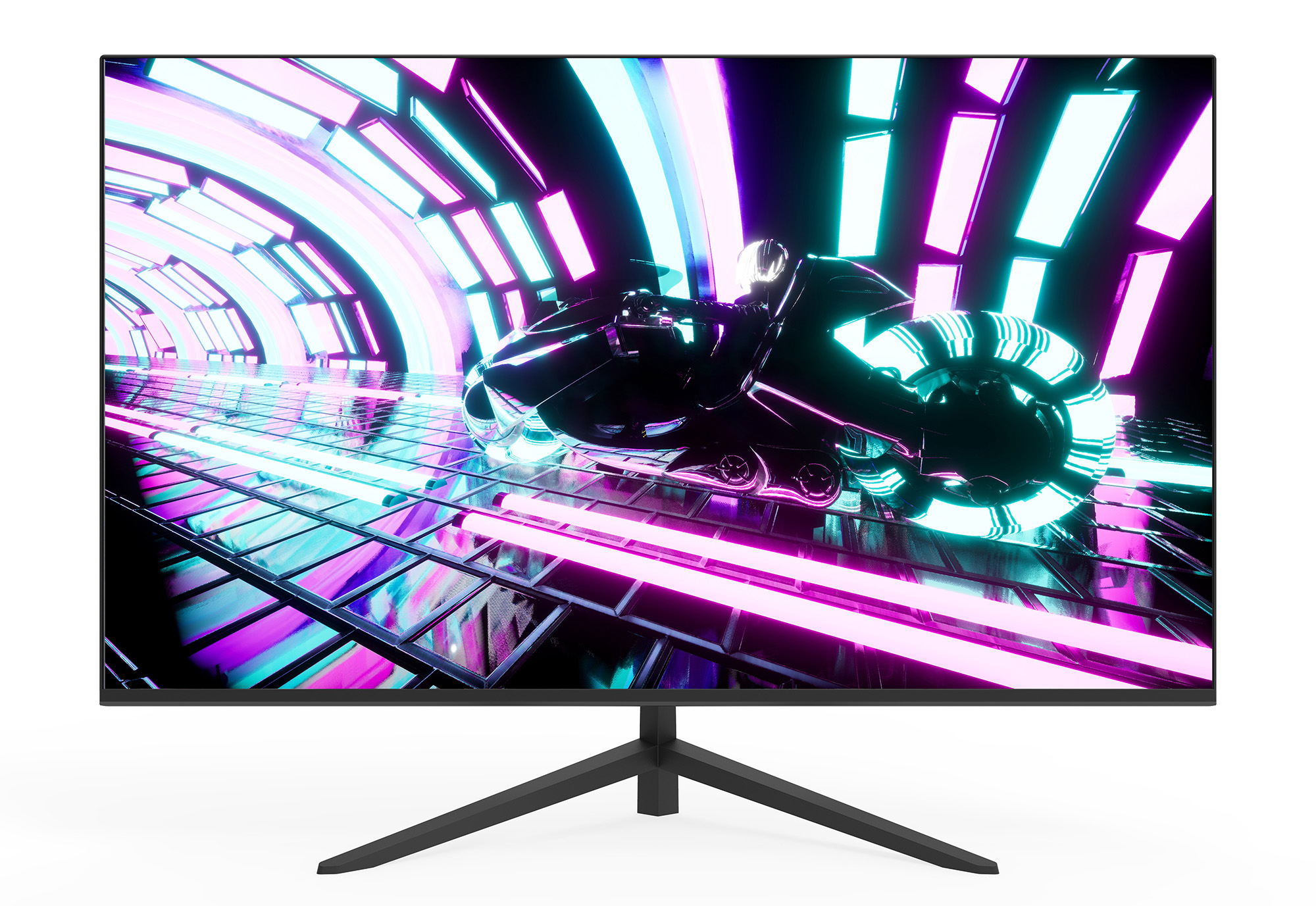

27″ X Series Monitor (LM-27X)

27″ X Series Monitor – LM-27X

Model:LM-27X
Resolution:1920*1080
Contrast: 4000 : 1
Response Time:12ms Typ(optional with OD 6.5ms )
Max. display frequency:1920*1080 75Hz
Screen Size:
27 Inches
Aspect Ratio:16:9

Descripción





X series Smart Monitor

The new Express LUCK X Series smart monitor is with complete independent functionality and comes with AndroidTV OS and remote control. Available from 24” to 32”. Accommodate your needs for both productivity and entertainment.





True Color in FHD

Presenting clear, true color images by FHD, which displays colors richly and accurately. FHD display makes your beautiful photos and graphics come alive.





Entertainment tailored for you

You can access over 700,000 movies and shows on the AndroidTV OS and control your device with voice without connecting to a separate PC.





 Apps on your big screen

Enjoy entertainment like Netflix, YouTube, Disney+ and other apps which can download from Google Play.

Specifications

Curved / flat

Flat

OC

AUO / CSOT

Surface Treatment

Anti-Glare, 3H

Panel type (Display Mode)

VA panel

Brightness(Typical)

250 cd/m2 (Typ.)

Contrast(Typical)

4000 : 1

Pixel Pitch(mm)

0.1038(H) x 0.3114(V)

Resolution (H x V)

1920*1080

Aspect Ratio

16:9

Response Time(Typical)

12ms Typ(optional with OD 6.5ms )

View Angles LR,UD(CR=10)

178°(H) /178°(V)

Display Colors

1.07G (2 ch, 8-bit)

NTSC(Area)

72%

Anti-flicker

Yes

G-Sync

NA

Free Sync

Yes

Anti-Bluelight

Yes

HDR/DCR

Yes

Over Drive

NA

Anti-glare

Yes

Daisy Chain

NA

USB C DisplayPort Alternate Mode

Support Android Mobile phone OS (only use in mobile phone have this function)

Horizontal Freq.

52.8 to 84KHz

Vertical Freq.

48 to 75HZ

Max. display frequency
(Resolution H*V/Fv)

1920*1080 75Hz

VGA

x1

HDMI1.4

x1 (HDCP 1.4)

Type-C(DP)

Yes

Output Type-C

USB PowerDelivery 18W(Support 18W Full Power output When LCD is off) & DisplayPort Alternative Mode

Audio Out

Yes

Earphone

Yes

Speaker(Typical, Amplifier output)

optional 4Ω 2W*2

Front Control

NA

On Screen Display

12 Language: English, French, German, Chinese, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, Korean, Japanese

Color

6500、7500、9300、User

Preset Mode

GAME、MOVIE、PHOTO、STADNARD

Consumption(Typical)

On: <60 W
Standby<=0.5W, Off<=0.5W

AC Power Range

DC 12V5A (PSE) 60W

Power Mode

Adapter

Tilt

-5°~15°(+/-2°)

Kensington Lock

Yes

VESA Mounting

100×100 (screw hole: 4 holes with M4 x 8 mm)

Power Adaptor

x1(PSE required)

Power Cord (1.5M)

x1(Japanese Plug & PSE required)

HDMI Cable(1.5m)

x1

Stands

Assembling stand and base with one M5*10mm screw, the stand and monitor should be easy install , no need screw

User Manual

x1

Packing

With Stand(W*D*H)

614.1*465.12*188.3mm

Without Stand(W*D*H)

614.1*362.97*42.8mm

With Package(W*D*H)

673*107*421mm

Net Weight

Gross Weight

Loading alibilty
W/O Pallet

20′ GP/40GP/ 40′ HQ
979/2014/2296

Loading alibilty

20′ GP/40GP/ 40′ HQ
800//1680/1806

Pallet

20′ GP/40GP/ 40′ HQ
10/21/21
