24″ F Series Monitor (LM-24F1)

24″ F Series Monitor – LM-24F1

Model:LM-24F1
Resolution:1920*1080
Contrast: 3000 : 1
Response Time:16ms Typ
Max. display frequency:1920*1080 75Hz for VGA 、HDMI
Screen Size:
23.8 Inches
Aspect Ratio:16:9

描述





F Series Business Monitors

The new Express LUCK F Series business monitors are designed for work and entertainment at your office or at home. Available from 22” to 27” with two colors that can match your professional workplace.





 True Color in FHD

Presenting clear, true color images by FHD, which displays colors richly and accurately. FHD display makes your beautiful photos and graphics come alive.







Flexibility and Style

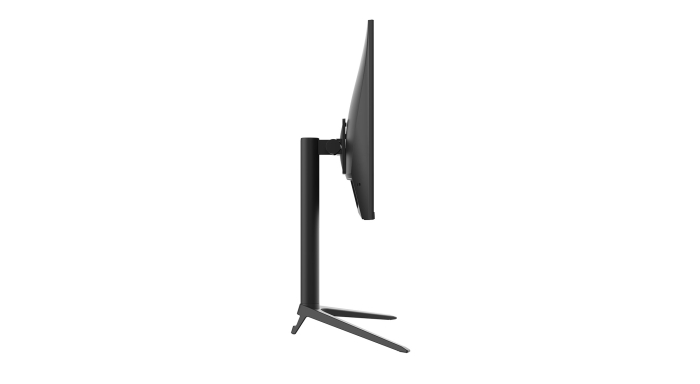

With our incredibly slim design monitor and three types of stands, you can choose a suitable stand according to your style and the one best fit in your desk.





USB Type-C™ High-Performance Connection

The monitor has the latest USB Type-C connection that supports 15W charging. You can enjoy the convenience of image and data transfer by charging by one cable and synchronizing the monitor with devices like laptops and smartphones.

Specifications

Curved / flat

Flat

OC

AUO

Surface Treatment

Anti-Glare,Haze 25%, Hard Coating (3H)

Panel type (Display Mode)

VA panel

Brightness(Typical)

250 cd/m2 (Typ.)

Contrast(Typical)

3000 : 1

Pixel Pitch(mm)

0.2745(H) *0.2745(V)

Resolution (H x V)

1920*1080

Aspect Ratio

16:9

Response Time(Typical)

16ms Typ

View Angles LR,UD(CR=10)

178°(H) /178°(V)

Display Colors

16.7M

NTSC(Area)

72%

Anti-flicker

Yes

G-Sync

NA

Free Sync

Ready

Anti-Bluelight

Yes

HDR/DCR

HDR 10

Over Drive

NA

Anti-glare

Yes

Daisy Chain

NA

Horizontal Freq.

53.7k-90KHz

Vertical Freq.

48 to 76HZ

Max. display frequency
(Resolution H*V/Fv)

1920*1080 75Hz for VGA 、HDMI

VGA

x1

HDMI1.4

x1

Type-C

Yes

Output Type-C

Output 18W MAX

Earphone

x1

Speaker(Typical, Amplifier output)

optional 4Ω 2W*2 (mainboard support 2W*2)

Back Control

Yes

On Screen Display

12 Language: English, French, German, Chinese, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, Korean, Japanese

Color

6500、7500、9300、User

Preset Mode

GAME、MOVIE、PHOTO、STADNARD

Consumption(Typical)

On: <36 W
Standby<=0.5W, Off<=0.5W

AC Power Range

100-240V~, 50/60Hz

Power Mode

Adaptor 12V4A

Tilt

-5°~15°(+/-2°)

Kensington Lock

Yes

VESA Mounting

75×75 (screw hole: 4 holes with M4 x 8 mm)

Power Adaptor

Plug-in adaptorx1

HDMI Cable(1.5m)

x1

Stands

Assembling stand and base with one M5*10mm screw, the stand and monitor should be easy install , no need screw

User Manual

x1

Packing

With Stand(W*D*H)

537.85*396.89*170.10mm (Metal Stand And Base)
538.85*394.68*172.73mm (Plastic Stand And Base)

Without Stand(W*D*H)

538.85*315.6*46.33mm

With Package(W*D*H)

593*375*108mm

Net Weight

2.55KG (Plastic Stand And Base)

Gross Weight

3.65KG (Plastic Stand And Base)

Loading alibilty
W/O Pallet

20′ GP/40GP/ 40′ HQ
1202/2516/2936

Loading alibilty

20′ GP/40GP/ 40′ HQ
940//1974/2352

Pallet

20′ GP/40GP/ 40′ HQ
10/21/21
