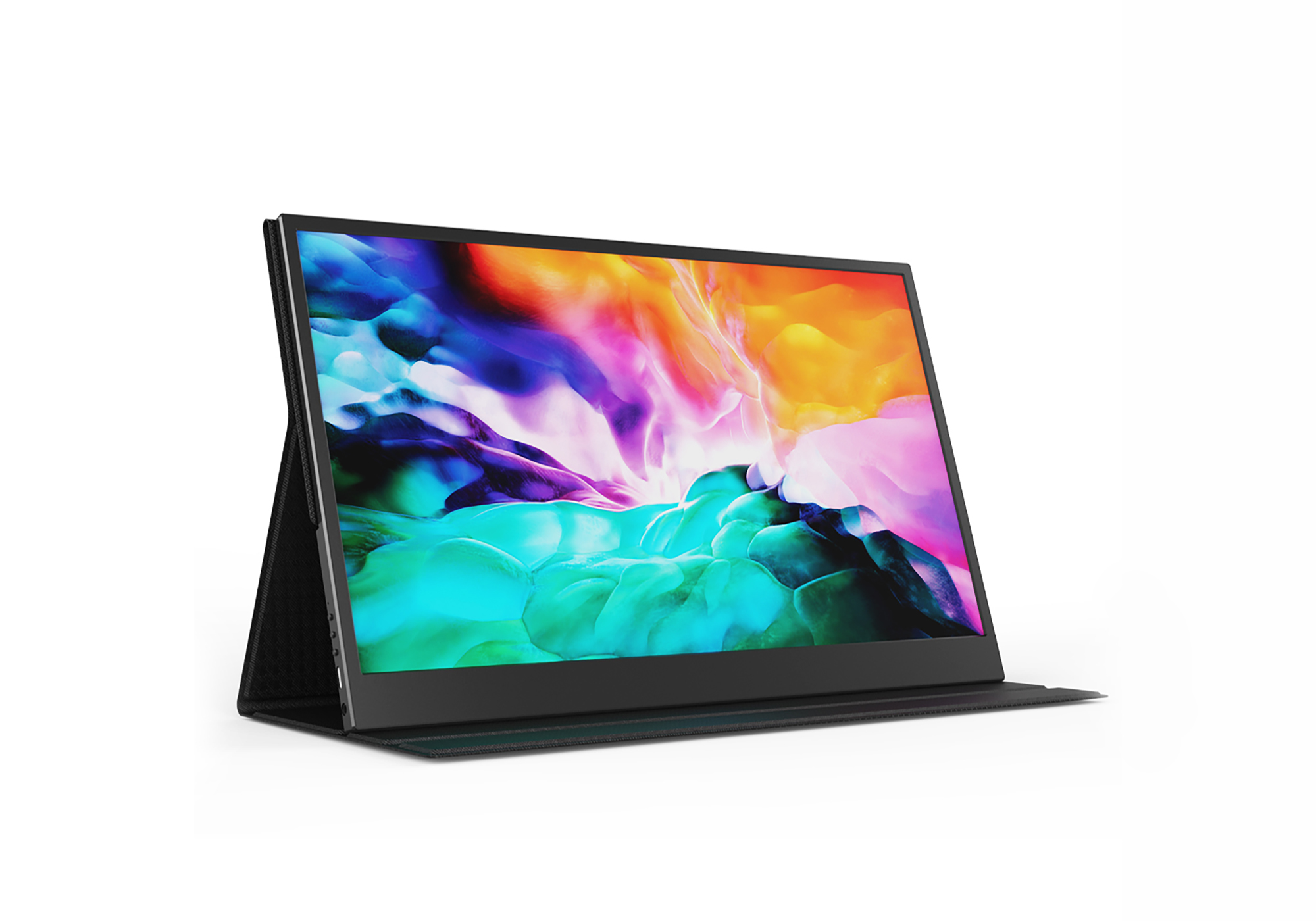

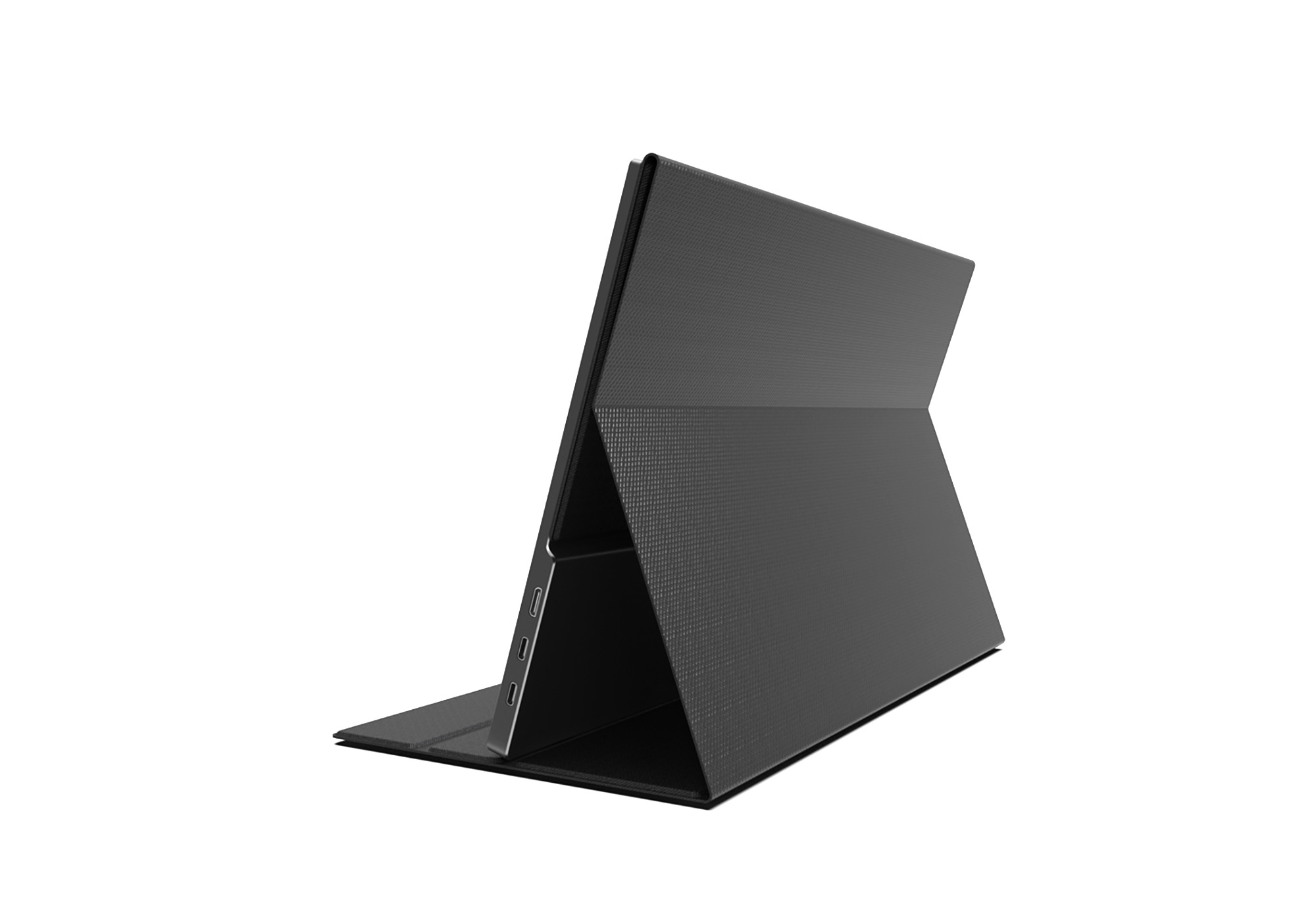

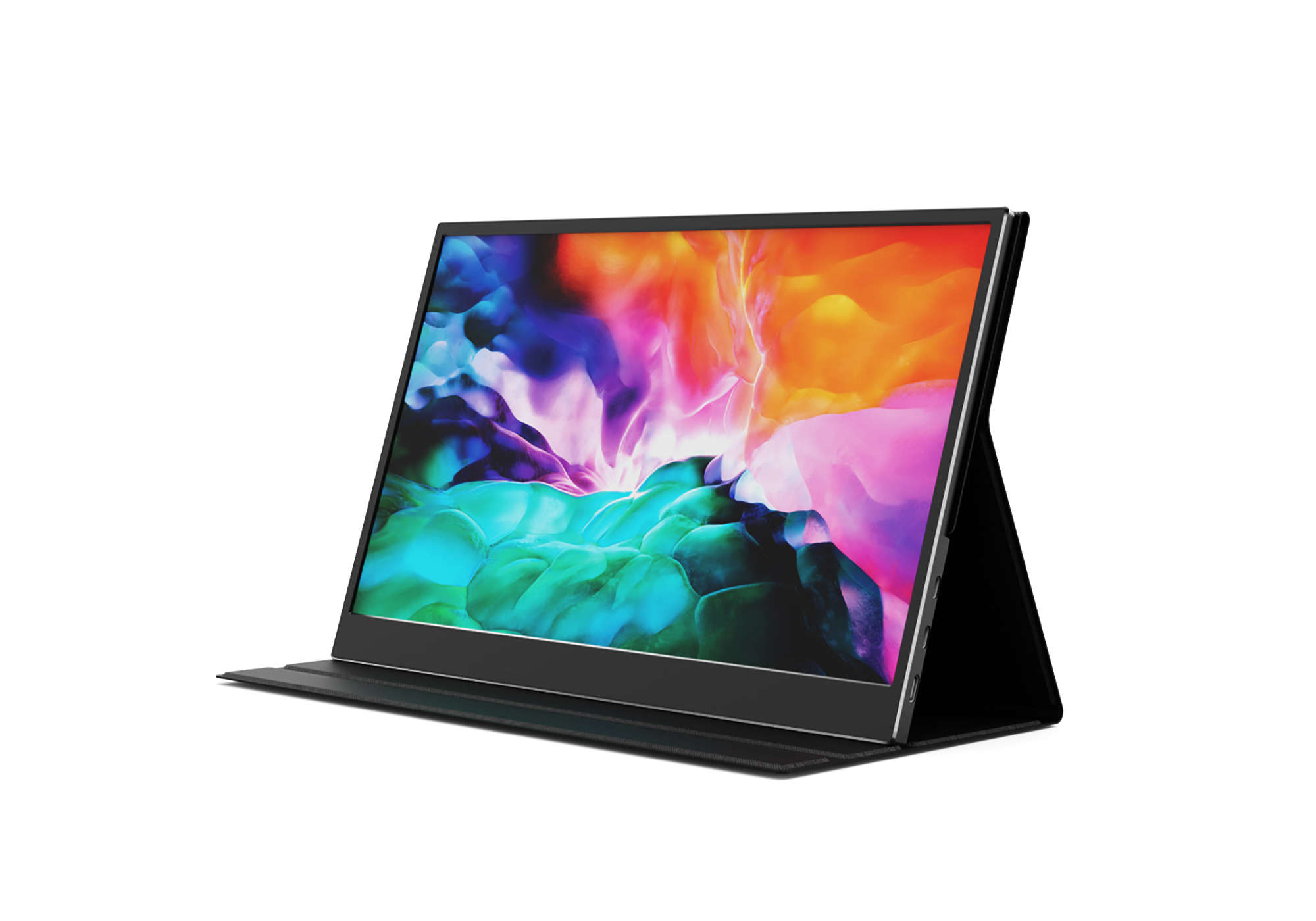

16″ Portable Monitor (M158FA)

16″ Portable Monitor – M158FA (Non Touch)

Model:M158FA (Non touch)
Resolution:1920*1080
Contrast: 800 : 1
Response Time:OD Off =30ms, OD On = 15ms (Typ)
Max. display frequency:1920*1080 60Hz
Screen Size:
15.8 Inches
Aspect Ratio:16:9

描述

Specifications

Panel

BOE/AUO/INL

Pnael Surface

HC

Brightness(Typical)

220 cd/m2 (Typ.)

Contrast(Typical)

800 : 1

Active Area(mm)

349.632(H)*196.668(V)

Pixel Pitch(mm)

0.1821(H)X0.1821(V)

Resolution (H x V)

1920*1080

Aspect Ratio

16:9

Response Time(Typical)

OD Off =30ms, OD On = 15ms (Typ)

View Angles LR,UD(CR=10)

H 170°/ V 170°(Min)

Display Colors

16.7M

NTSC(Area)

45%

HDR

Optional

FreeSync

Optional

Low Blue Light

Optional

G-SENSOR

NA

Rotate Angles

NA

Wireless projection

NA

Wired projection

NA

Vertical Freq.

58 to 62Hz

Max. display frequency
(Resolution H*V/Fv)

1920*1080 60Hz

TYPE-C (Full-featured USB-C)

x2

Mini HDMI(2.0)

x1

TYPE-C (OTG)

x1

Earphone

x1

Speaker(Typical)

1W*2(8Ω)

Front Control

NA

On Screen Display

Standard OSD format

Color

9300, 6500 , User Mode

Preset Mode

STANDARD

Consumption(Typical)

On: <12 W
Standby<=0.5W, Off<=0.5W

PD POWER

CH018A output:3.6-6V3.0A/6-9V2.0A/9-12V1.5A black

Tilt

0∘~ 85∘, 0∘(Holster full Wrap support )

VESA Mounting

YES(75mm)

Color Plan

Black

Temperature

0℃ ~ 40℃

Humidity

20% ~ 85%, non-condensing

Adaptor

Optional

Type-c Cable

x 1(1.0M)

Mini HDMI-HDMI Cable

x 1(1.0M)

USBA-Type-c Cable

OPTION

Type-C to USB

OPTION

User Manual

Sculptor M158FA-FCA manual with warranty card, 128G double copper paper, organ fold, 105 * 148mm

Sleeve

15.8 plastic all inclusive leather case, cross pattern + diamond lattice, 367 * 560mm

Packing

Dimension
(W*D*H)

355.3×225.7×10.8mm

Packing Dimension
(W*D*H)

417.6*279.6*71mm

Net Weight

0.8KG

Gross Weight

1.8KG

Loading with pallet (40′ Standard)

3520

Loading with pallet (20′ Standard)

1600
